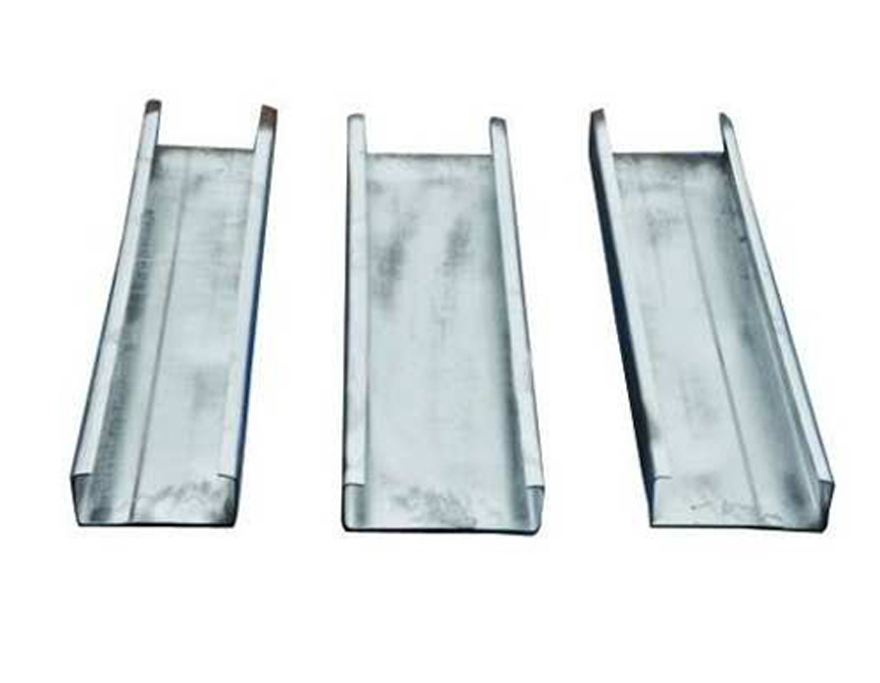

C-shaped Steel
 |
SCFM C-shaped Steel Bracket
C-shaped Steel is processed by the C-style automatic Molding Machine,the processing step is as belows,
Discharging-Levelling--Molding--Shaping--Straighten--Measuring--Punching Hole--Punching Elliptical Coneection Hole---Cutting
C-shaped Steel is mainly used for industrial workshop, civil construction, municipal engineering, oil platform, Bridges,'s girders, electrified railway electricity bracket, along the railway bridge steel structures such as light, super light h-beam very suitable for container, mobile houses, all kinds of garage, box train, electrical stents, various venues, small villas manufacturing.
| Size | 80x40x2mm to 380x110x4mm |
| Length | 6m or as clients' request |
| Material | Q195,Q235,Q345,SS400, ect. |
| Standard | Chinese standard,ASTM,EN,JIS etc. |
Hot Rolled Channel Steel/Carbon Mild Structural Steel
Specifications
| Model | Height(mm) | Width(mm) | Thickness (mm) | Theoretical weight kg/m |
| 5# | 50 | 37 | 4.5 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 6.634 |
| 8# | 80 | 43 | 5.0 | 8.045 |
| 10# | 100 | 48 | 5.3 | 10.007 |
| 12# | 120 | 53 | 5.5 | 12.059 |
| 12.6 | 126 | 53 | 5.5 | 12.319 |
| 14#a | 140 | 58 | 6.0 | 14.535 |
| 14#b | 140 | 60 | 8 | 16.733 |
| 16#a | 160 | 63 | 6.5 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 19.752 |
| 18#a | 180 | 68 | 7 | 20.174 |
| 18#b | 180 | 70 | 9 | 23 |
| 20#a | 200 | 73 | 7 | 22.637 |
| 20#b | 200 | 75 | 9 | 25.777 |
| 22#a | 220 | 77 | 7 | 24.999 |
| 22#b | 220 | 79 | 9 | 28.453 |
| 25#a | 250 | 78 | 7 | 27.41 |
| 25#b | 250 | 80 | 9 | 31.335 |
| 25#c | 250 | 82 | 11 | 35.26 |
| 28#a | 280 | 82 | 7.5 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 35.832 |
| 28#c | 280 | 86 | 11 | 40.219 |
| 30#a | 300 | 85 | 7.5 | 34.463 |
| 30#b | 300 | 87 | 9.5 | 39.173 |
| 30#c | 300 | 89 | 11.5 | 43.883 |
| 32#a | 320 | 88 | 8 | 38.083 |
| 32#b | 320 | 90 | 10 | 43.107 |
| 32#c | 320 | 92 | 12 | 48.131 |
| 36#a | 360 | 96 | 9 | 47.814 |
| 36#b | 360 | 98 | 11 | 53.466 |
| 36#c | 360 | 100 | 13 | 59.118 |
| 40#a | 400 | 100 | 10 | 58.928 |
| 40#b | 400 | 102 | 12.5 | 65.208 |
| 40#c | 400 | 104 | 14.5 | 71.488 |
