Products Model

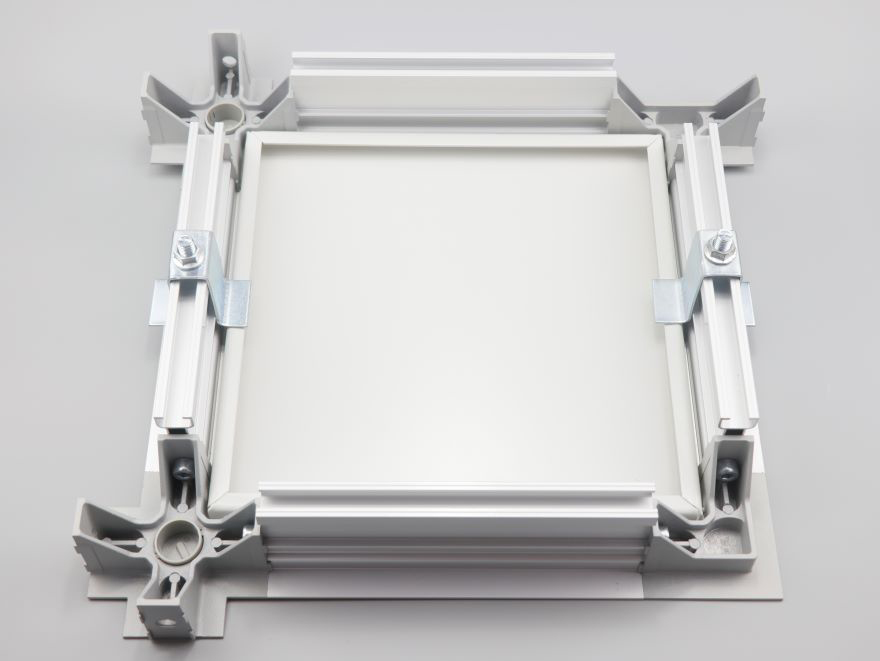

SCFM-C210

Material:

Aluminum Alloy Keel, coating Steel Blind Plate

Blind Pate Type: 1,)Octagon Hem Coating Steel Plate, Thickness:1.6mm, 1.8mm, 2mm

2,)Multi-Hole Deflector Plate, 2MM thickness

3,)Alu Honeycomb Partition Plat，Thickness: 12mm,50mm

4,)Plaster Partition Plate, Thickness: 12mm ,50mm

Ceiling Size

1200*1200MM, 1200*600MM, Thickness:1.6MM, 1.8MM, 2.0MM

Blind Plate Size

1170*1170mm, 1170*570mm

Hardware Accessories

Metal Reinforcement Sheet, one-time pressing and molding, be fit to the junction reinforcing.

Square Regulator, Blind Plate Clamp

Description: T-Grid/T-Bar is widely used in the Cleanroom of electronic industrial and related fields etc, its Block-based design can be fit to ornamental of the FFU Blower Ventilator set, Fire Sprinkler , Smoke Sensor, Clean Lights etc, and it can be processed and packaged at the factory according to clean room requesting, which decrease effectively operation pollution , furthermore, its strength rate is very high, and people can walk on it.

Advantages:

1,) Stamping Blind Plate changed from the traditional standard Folding Blind Plate  can enhance effectively production efficiency, in the meantime, Integrated Stamping can intensify the structural length of Blind Plate.

2,)Double Layer airtightness can be formed through built-in sealing strip between the Stud Blind Plate and Joint Slot, and sealing strip between Blind Plate and Keel Flange , it can enhance effectively airtight effect.

3,)The traditional Blind Plate is placed on the Keel Flange and Plate and Keel Slot lock more tightly., which can enhance the Blind Plate safety.

Suspend Groove on the T-Bar Bottom, used in decoration of PVC Cover Plate, avoiding stack of dust Particle.

The upward Groove and downward Groove of T-Bar can use standard Nut to suspend, decreasing usage of special screw, controlling its cost.

The exclusive lights of free dust room can be installed on the bottom of T-Bar.

The Special bumping design between T-Bar and Joint under using FFU weight can intensify airtight effect and lower the loss of the wind volume.

Multi-hanging point can avoid the problem of hanging failure.

Fire Detector-smoke can be installed on the bottom of Joint.
