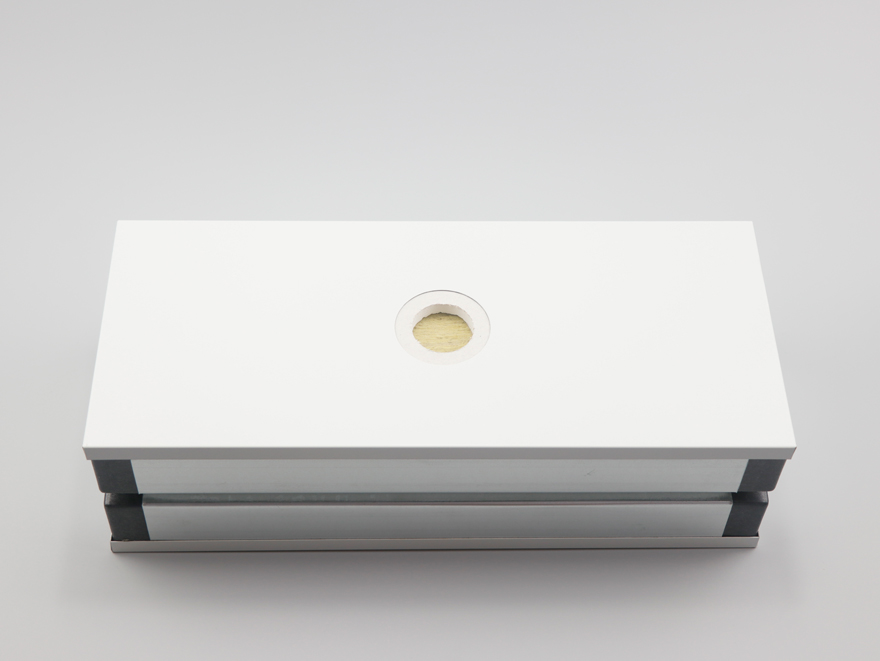

Product Model

SCFM-P100

Plates Material

0.5-0.6MM Thickness S/S or Color Coating Plate,

Plate Coating: Anti-static PE/PVDF, Saltinization Film, Coating Thickness≥ 20UM

Filling Core material:

89mm Rock Wool, Density:100kg/M3,  12MM thickness Plasterboard

Plate Frame

0.6-0.8MM Galvanized Strip Arch Style

Specifications

Width: 898MM, 1198MM, Thickness: 100MM, Unit Weight:27kg/M2

Protection

PVC Film

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Filling Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around  two plates, and it end up being composite into a whole Partition plate through pressing process.

The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling Rock Wool and Plasterboard core materials, and it features thermal insulation, fireproof and sound insulation etc, increasing one Layer 12mm-thickness Plasterboard based on the 100MM-thickness Rock Wool Metal Partition Plate, intensifying fireproof time performance.

It is widely applied to cleanroom wall and ceiling with fireproof requesting of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on.
