50MM Color Steel Gypsum Cleanroom Partition(SCFM-P090)
 |
50MM Color Steel Plasterboard Cleanroom Partition
|
Product Model |
SCFM-P090 |
| Appearance | White Gray or OEM |
|
Plates Material |
0.5-0.6MM Thickness S/S or Color Coating Plate Plate Coating:Antistatic PE/PVDF,Salinization Film, Coating Thickness≥ 20UM |
|
Filling Core material: |
37mm Thickness Rock Wool, Density: 100KG/M3 12MM thickness Plasterboard, Single Layer |
|
Plate Frame |
0.6-0.8MM Galvanized Strip Arch Style |
|
Specifications |
Width: 898MM, 1198MM, Thickness: 50MM, Unit Weight：20kg/M2 |
| Accessories | Adhesive:Epoxy Glue/Polyurethane Glue, Sealing Parts: Molding PP Pin Inserts |
|
Protection |
PVC Film |
|

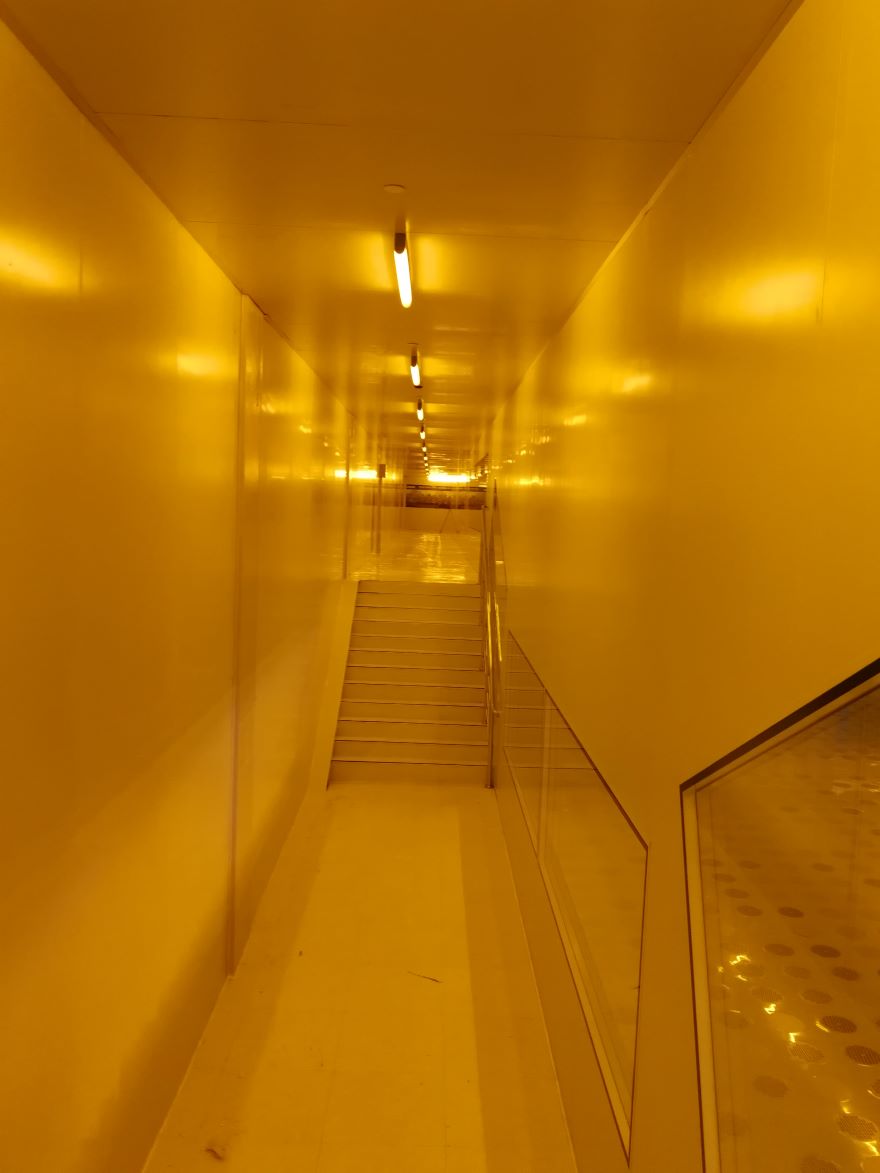

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Filling Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around two plates, and it end up being composite into a whole Partition plate through pressing process. The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling different core materials, and it features thermal insulation, fireproof and sound insulation etc, increasing one layer 12mm-thickness Plasterboard based on the 50MM-thickness Rock Wool Metal Partition Plate, intensifying fireproof time performance. It is widely applied to cleanroom wall and ceiling with fireproof requesting of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on. | |
