Product Model

SCFM-P070

Plates Material

0.5-0.6MM Thickness Steel Plate

Filling Core material:

44MM Alu Honeycomb

Plate Frame

0.6-0.8MM Galvanized Strip Arch Style

Specifications

Width: 898MM, 1198MM, Thickness:45mm, OEM, Unit Weight:9.5kg/M2

Appearance Color

White Gray, OEM

Protection

PVC Film

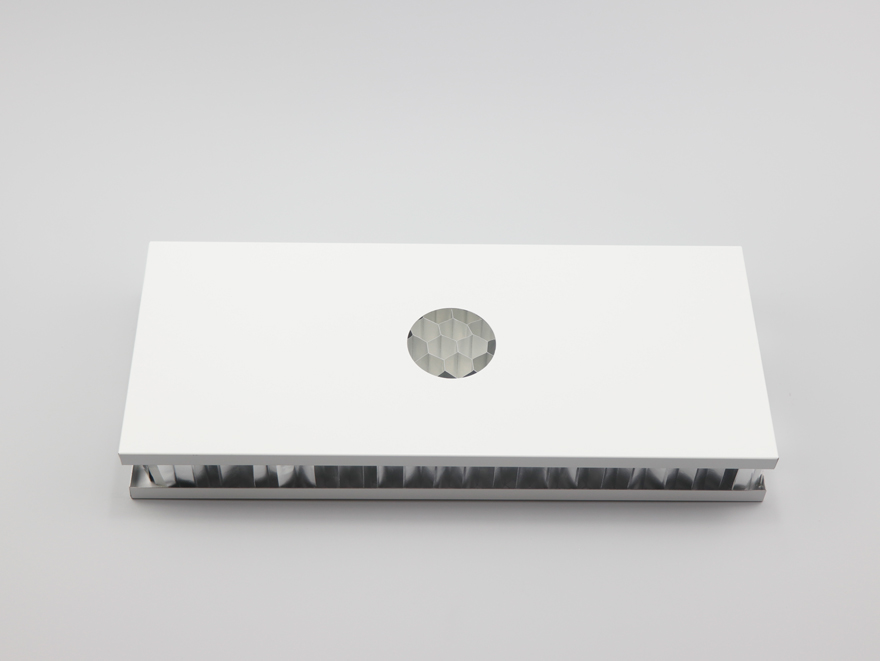

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Filling Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around two plates, and it end up being composite into a whole Partition plate through pressing process.

The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling Alu Honeycomb core materials, and it features thermal insulation, fireproof and sound insulation, production with dust-free and incombustible material, it can be removable and installable easily being fit to exclusive Alu profile with screw.

Alu Honeycomb Sandwich Steel Partition Plate is widely applied to inner wall of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on.
