Product Model

SCFM-P060

Plates Material

0.5-0.6MM Thickness Steel Plate

Filling Core material:

100K-120K Rock Wool and 5MM thickness Glassy Magnesium

Plate Frame

0.6-0.8MM Galvanized Strip Arch Style

Size

Width: 898MM, 1198MM, Thickness: 100mm

Appearance Color

White Gray, OEM

Protection

PVC Film

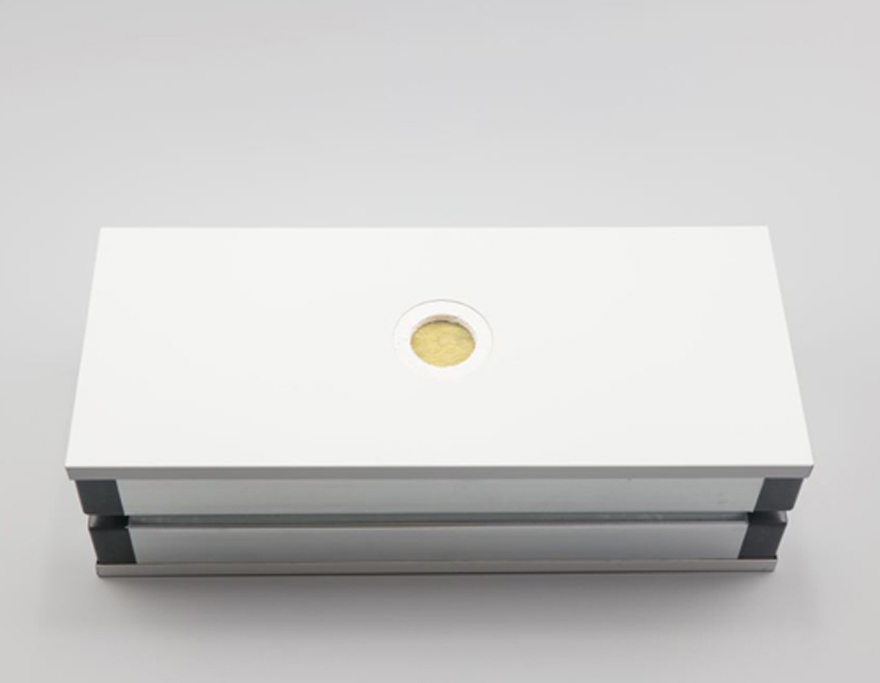

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Filling Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around two plates, and it end up being composite into a whole Partition plate through pressing process.

Glassy Magnesite Wool Sandwich Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling different core materials, and it features thermal insulation, fireproof and sound insulation etc, increasing two layers 5MM-thickness Glassy Magnesite plate based on 100MM thickness Rock Wool Steel Partition Plate, intensifying fireproof time performance.

It is widely applied to cleanroom wall and ceiling with fireproof requesting of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on.
