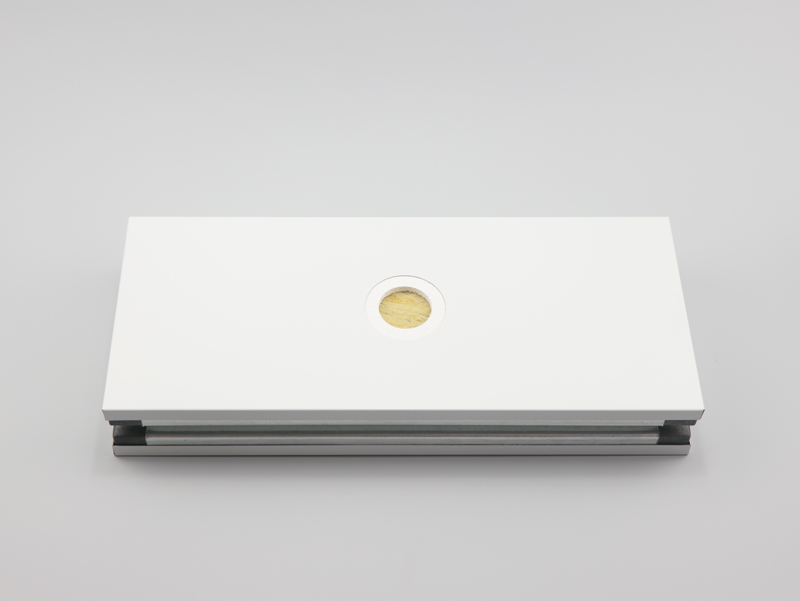

50MM Glassy Magnesium Wool Cleanroom Partition(SCFM-P040)
 |
|
Product Model: SCFM-P040 | |
| Appearance | White Gray or OEM |
|
Plates Material |
0.5-0.6MM Thickness S/S or Color Coating Plate, Plate Coating: Antistatic PE/PVDF, Salinizaion Film, Coating Thickness≥ 20UM |
|
Filling Core material |
39mm/44mm thickness Rock Wool , Density: 100kg/M3, 5MM thickness Glassy Magnesite Plate, Single/Double Layer |
|
Plate Frame |
0.6-0.8MM Galvanized Strip Arch Style |
|
Specifications |
Width: 898MM, 1198MM, Thickness: 50MM, Single Layer Unit Weight:17.5kg/M2, Double Layer Unit Weight:22kg/M2 |
| Accessories | Adhesive:Epoxy Glue/Polyurethane Glue, Sealing Parts: Molding PP Pin Insert |
|
Protection |
PVC Film |
|

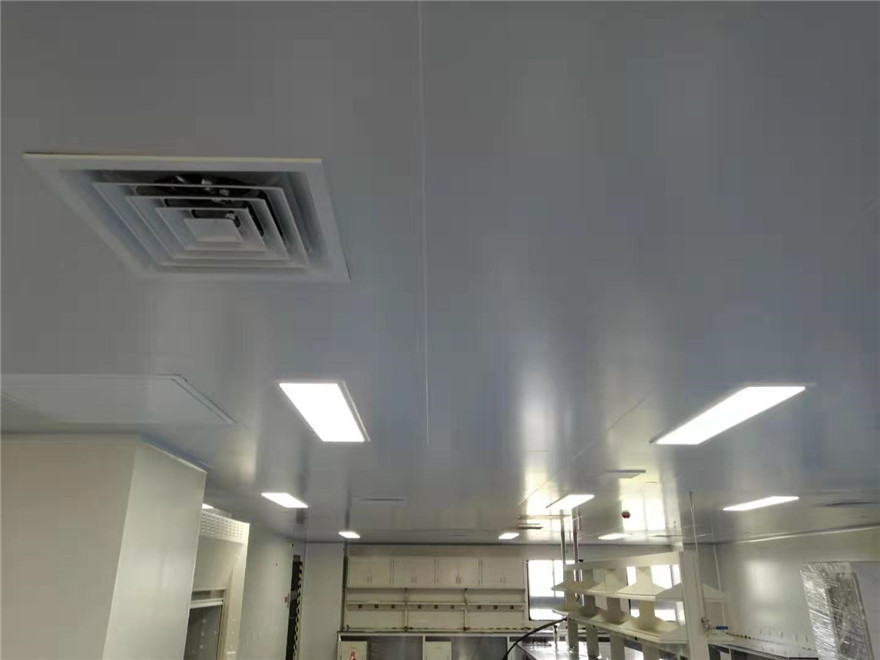

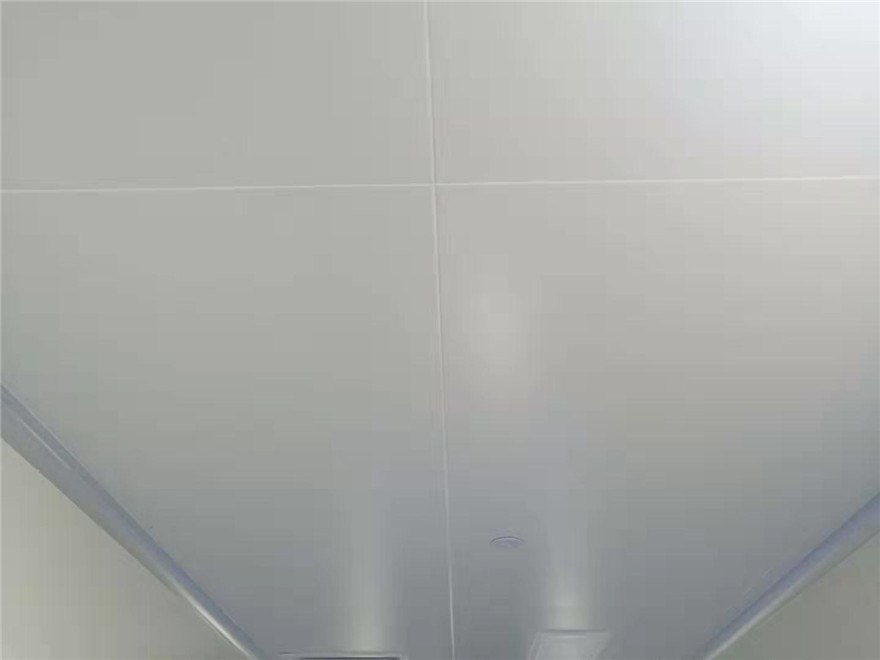

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Filling Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around two plates, and it end up being composite into a whole Partition plate through pressing process. The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling Glassy Magnesite core materials, and it features One-two more layer Glassy Magnesite based on the traditional Rock Wool Partition Plate, increasing structural strength and fireproof performance Glassy Magnesite Wool Sandwich Partition Plate is widely applied to cleanroom wall With fireproof requesting of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on. | |
The Drawing is as belows
