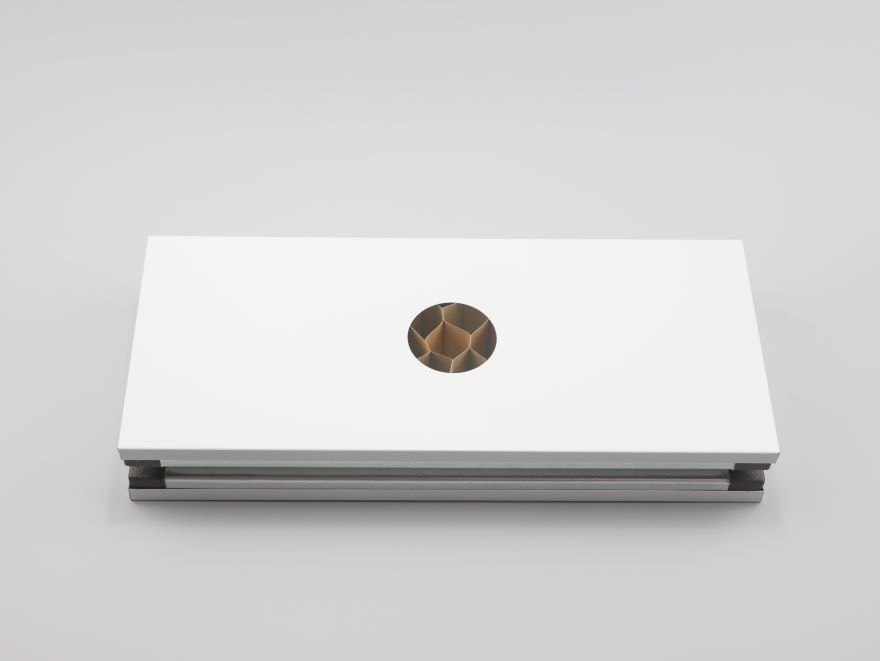

50MM Paper Honeycomb Cleanroom Partition(SCFM-P020)
 |
|
Panel Material |
0.5-0.6MM Thickness S/S or Color Coating Plate, Plate Coating:Anti-static PE/PVDF, Film Salinization, Coating Thickness ≥ 20UM |
|
Filling Core material: |
49MM Heat-Resistant Paper Honeycomb |
|
Panel Frame |
0.6-0.8MM Galvanized Strip Arch Style |
|
Specifications |
Width: 898MM, 1198MM, Thickness: 50MM, Unit Weifht: 12.5kg/M2 |
| Accessories | Adhesive: Epoxy Glue or Polyurethane Glue, Sealing Parts: Molding PP Pin Insert |
|
Appearance Color |
White Gray, OEM |
|
Protection |
PVC Film |
|

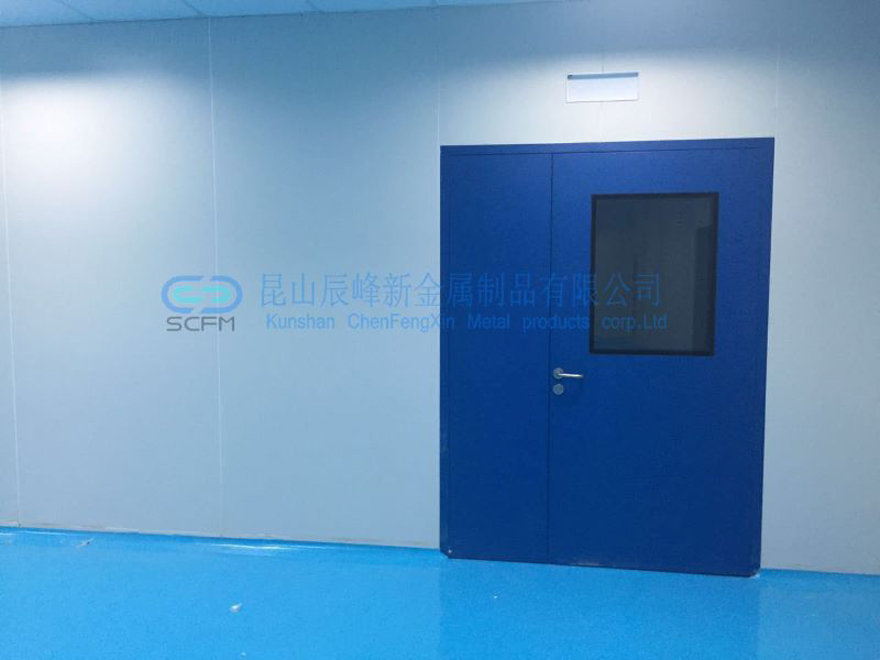

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Paper Honeycomb Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around two plates, and it end up being composite into a whole Partition plate through pressing process. The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling Paper Honeycomb core materials, and it features good structural Strength, lightness and convenience etc. Paper Honeycomb Sandwich Steel Partition Plate is widely applied to cleanroom wall and suspended ceiling of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on. | |

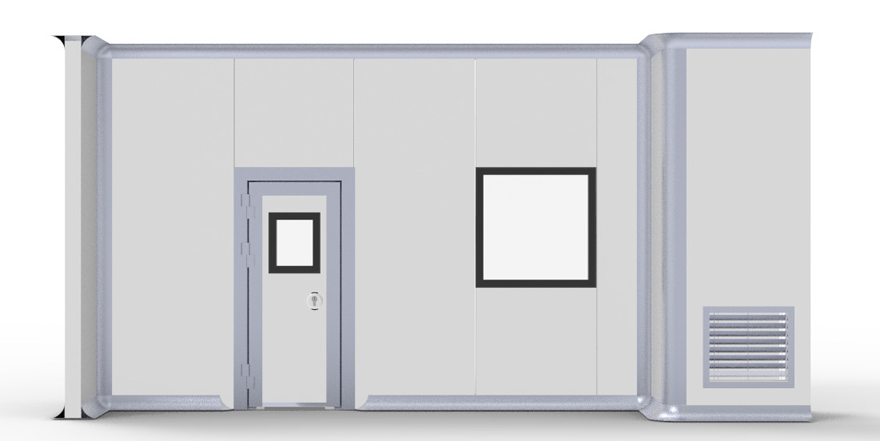

Drawing is as belows:
