Product Model: SCFM-P010

Panels Material

0.5-0.6MM Thickness S/S or Color Coating Plate,

Coating: Anti-static PE or PVDF, Salination Film, thickness of Coating≥ 20UM

Filling Core material:

49MM Rock Wool, Density:100kg/m3

Panel Frame

0.6-0.8MM Galvanized Strip Arch Style

Specifications

Width: 898MM, 1198MM, Thickness: 50MM, Unit Weight:1.5kg/M2

Appearance Color

White Gray, OEM

Protection

PVC Film

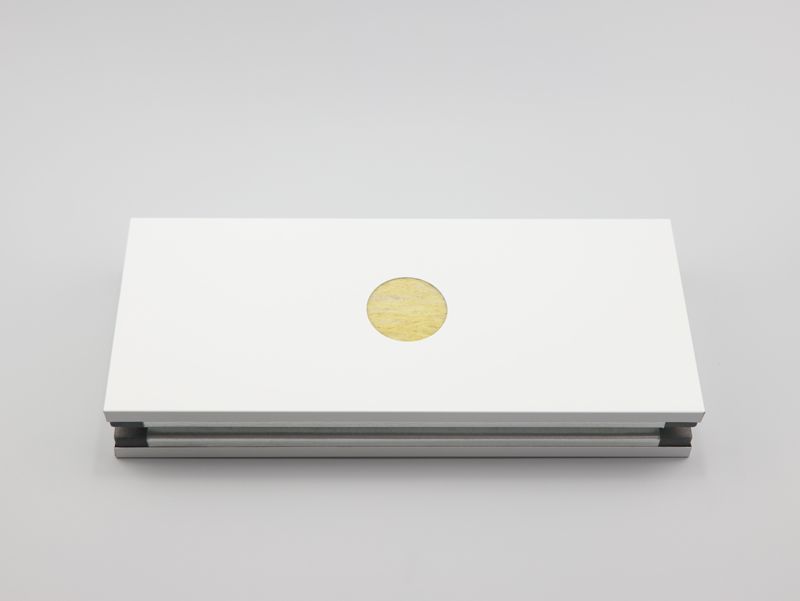

Description: Cutting and Bending Color Coating Steel Plate and Galvanized Strip by AUTO Molding Equipment, and then placing the Rock Wool Core material between two processed Color coating Steel Plates, placing Galvanized Strip Frame around  two plates, and it end up being composite into a whole Partition plate through pressing process.

The Partition Plate is much more of high quality, high efficiency, better appearance and safety under filling different core materials, and it features thermal insulation, fireproof and sound insulation etc, its modular design is removalbe and installable easily.

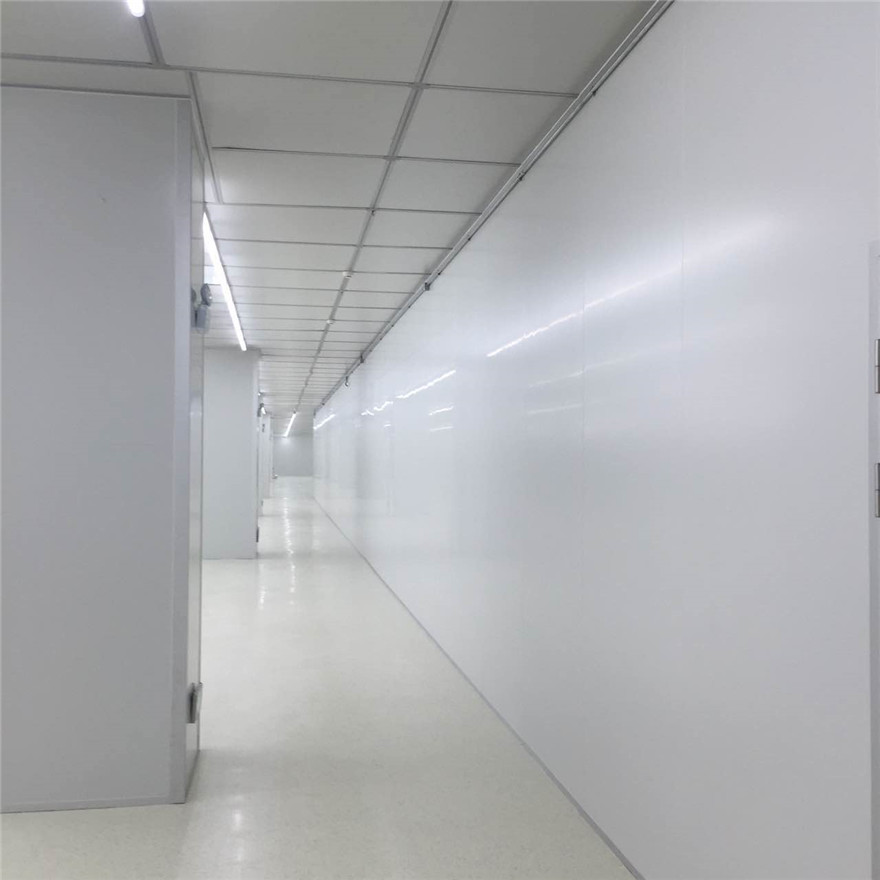

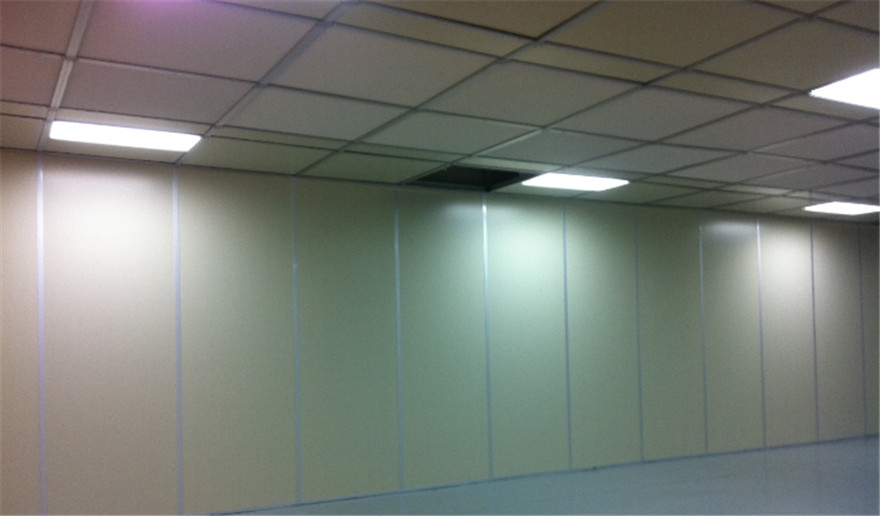

Rock Wool Partition Plate is widely applied to cleanroom wall and the suspended ceiling of the cleanroom and related projects of the Electronic industry, Petrochemical industry, Foods and Hospitals, Aviation and Scientific Institute and so on.
